Split Frame Hydraulic Pipe Cutting Beveling Machine With Aluminum Material

Product Categories
Bohyar Engineering Material Technology(Suzhou)Co., Ltd
Contact Now

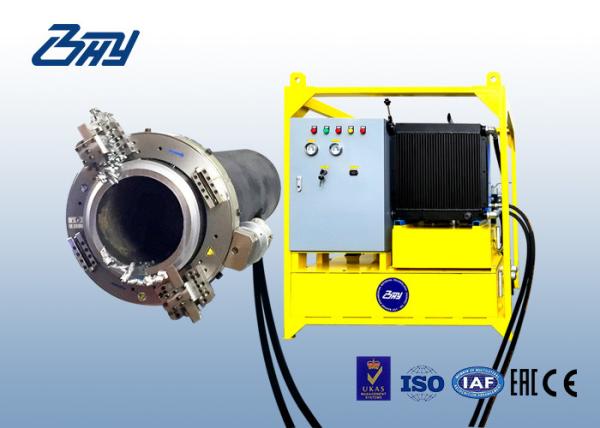

Split Frame Hydraulic Pipe Cutting Beveling Machine With Aluminum Material

Brand Name : BHY

Model Number : SFM1824H

Certification : ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007

Place of Origin : Jiangsu, China

MOQ : 1 set

Price : Negotiate

Payment Terms : L/C, T/T,

Supply Ability : 1000 sets/year

Delivery Time : 30-45 work days

Packaging Details : Aluminum case, wooden case or metal packing case

Name : Split Frame Hydraulic Pipe Cutting Beveling Machine With Aluminum Material

Drive Mode : hydraulic

Dimension : 980*895*580mm

Net weight : 123kg

Business parters : CNPC, SINOPEC, CNOOC etc.

Material : high-strength aeronautical aluminum

Application Range (O.D.) : 18" - 24"(457.2-609.6mm)

Wall Th. : ≤100mm

Contact Now

Split Frame Hydraulic Pipe Cutting Beveling Machine With Aluminum Material

Product Introduction

SFM series are portable processing equipment for cutting, beveling and end prefabrication of various pipes,

with which cutting and beveling can be conducted at the same time.

The SFM Series manufactured by Bohyar cuts and bevels the pipe end or middle of pipe by clamping external wall,

with processing diameter up to 2100 mm and maximum wall thickness of 100 mm.

Split Frame Hydraulic Pipe Cutting Beveling Machine With Aluminum Material

Bevel Type

We have standard beveling tools of 5°,10°,20°,30°,37° and also can customize the tools.

Split Frame Hydraulic Pipe Cutting Beveling Machine With Aluminum Material

Models Dimension

Split Frame Hydraulic Pipe Cutting Beveling Machine With Aluminum Material

The axial and radial clearance tables of installing thick-wall tool slide and hydraulic motors

Model A (mm) B(mm) C(mm) D(mm) E(mm) F(mm) G(mm)
SFM0206 176 70 122 176 225 253 164
SFM0408 228 70 122 176 225 253 164
SFM0612 332 70 122 176 225 253 164
SFM0814 364 70 122 176 225 253 164
SFM1218 468 70 122 176 225 253 164
SFM1420 518 70 122 176 225 253 164
SFM1824 622 102 98 176 235 253 174
SFM2026 674 102 98 176 235 253 174
SFM2430 776 102 98 176 235 253 174
SFM2632 826 102 98 176 235 253 174
SFM3036 928 102 98 176 235 253 174
SFM3238 1006 102 98 176 235 253 174
SFM3642 1082 102 98 176 235 253 174
SFM4248 1236 102 98 176 235 253 174
SFM3648 1296 140 220 276 235 253 174
SFM4860 1600 140 220 276 235 253 174
SFM6072 1905 140 220 276 235 253 174
SFM7284 2210 140 220 276 235 253 174

Basic Info.

Model SFM1824H
Drive Mode Hydraulic
Hydraulic Requirements 65L/min,10MPA
Application Range (O.D.) 18" - 24"
Wall Thickness ≤100mm
Net Weight 123kg
Feed Method Star wheel system
Feed 0.08mm/r
All standard accessories included

Report on Comparison of Product Advantages

Name of component Bohyar Others Advantages
Fixed coil Imported aviation aluminum Steel 45# Light
Moving coil Die steel Steel 45# Solid and durable
Tool Imported tool material Low price Good quality
Tool slide Die steel Steel 45# Solid and durable
Tool slide structure Compact and small size Large Small size
Eccentric shaft Quenching and grinding processing Lathe processing High precision
Gear Gear-grinding processing Gear-shaping processing High precision, stable operation and low noises
Power supply (electric) Germany motor Low price Strong power, stable operation, low noise and long service life
Power supply (pneumatic) Taiwan pneumatic motor Low price Strong power, stable operation, low noise and long service life
Power supply (hydraulic) White motor Low price Strong power, stable operation, low noise and long service life

Working on site

Split Frame Hydraulic Pipe Cutting Beveling Machine With Aluminum Material
